Number of lights

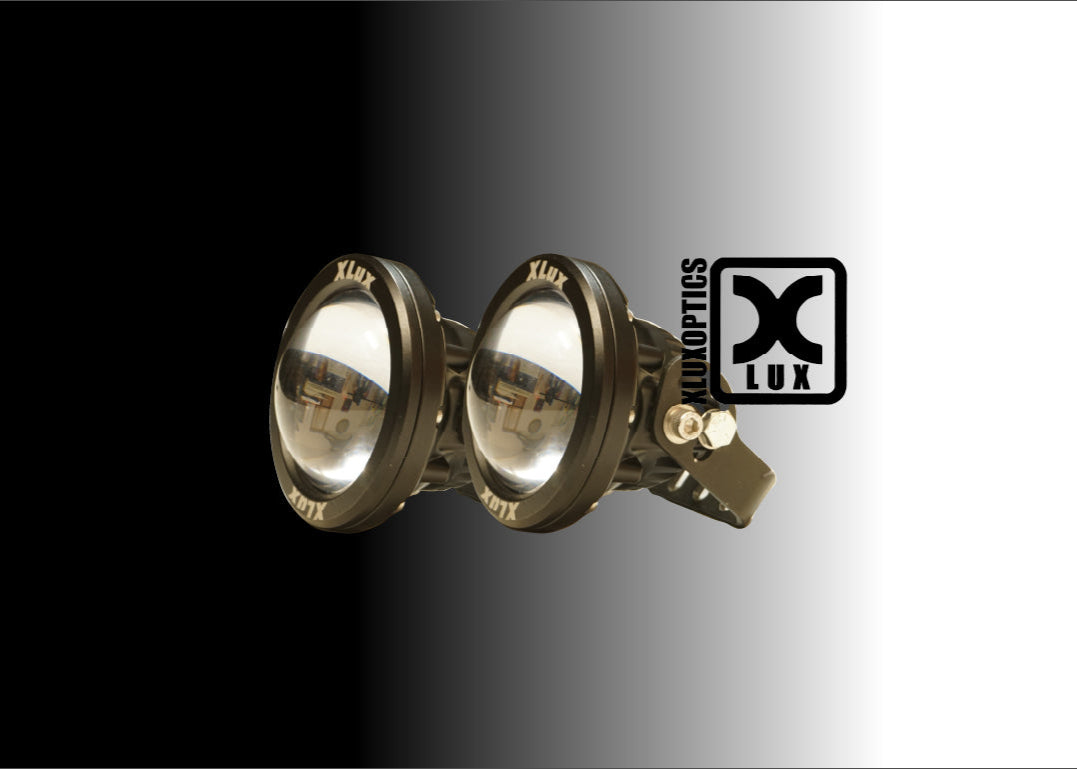

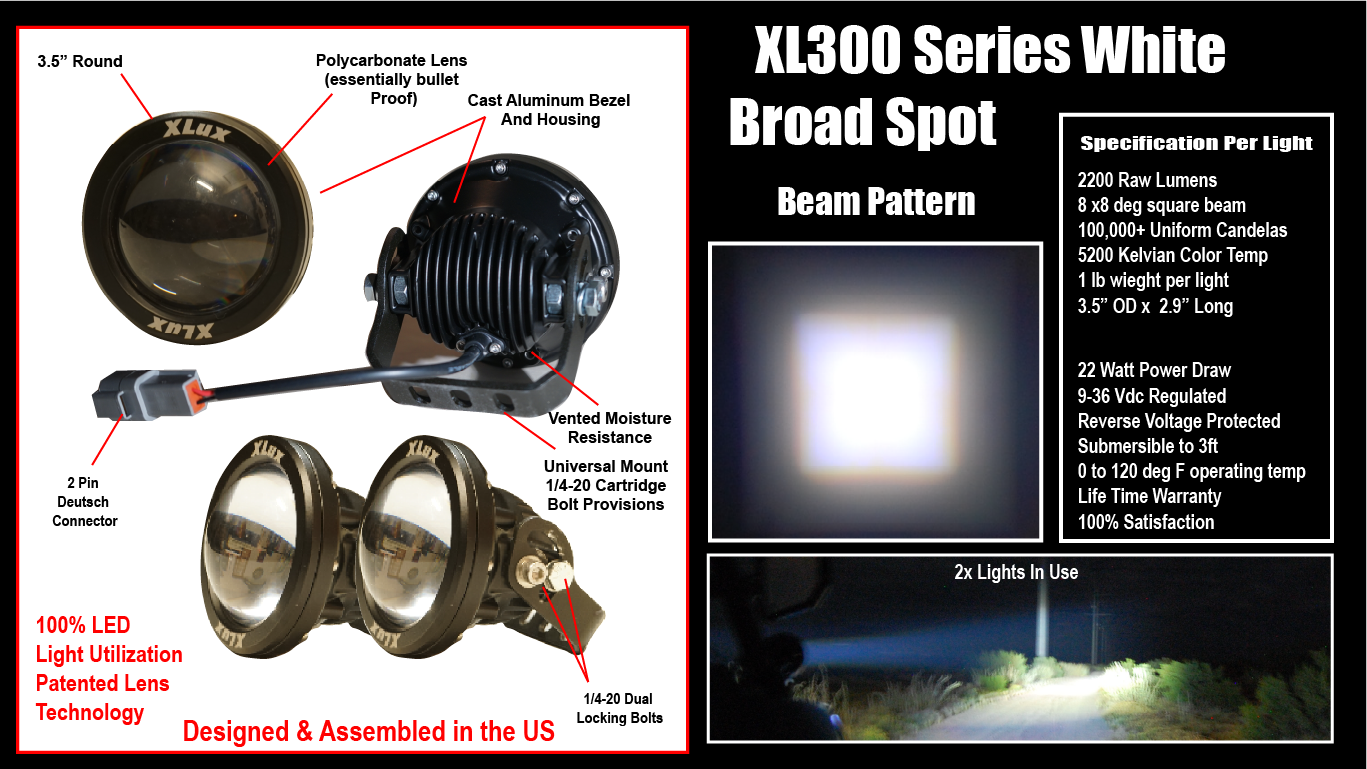

The XL300 Broad Spot is an excellent choice for an off-road enthusiast, whether an ATV, UTV, or off-road truck, you’re going to love these lights. The lamp has an intense and uniform beam profile with an 8-deg spread. The XL300 Broad Spot offers high lumen output and a much broader beam width. The XL300 Broad Spot lamp pulls 20 watts while emitting 2200 Lumens with a 5k color temperature. But don't let the lumens fool you, this lamp will arguably outperform any 40-watt competitor on the market. The primary difference is that all the light generated from an LED gets projected into the beam pattern. This is what defines the patented technology inside XLux lights. No light gets blocked, no light gets spilled. All light is used effectively making these lights unique and versatile to many applications. What is also worth discussing is the illumination within the 8-deg profile. Most competitors have a pinpoint hot spot in the beam profile. Not the XL300 Broad Spot. The peak beam intensity is generally uniform illuminated across the entire beam profile. At XLux we do it right! Extreme lighting for extreme living!
View full details

Collapsible content


-9 to 36Vdc Input

-20watt Power Draw

-Reverse Voltage Protection

-Fully submersible

-Moisture Venting

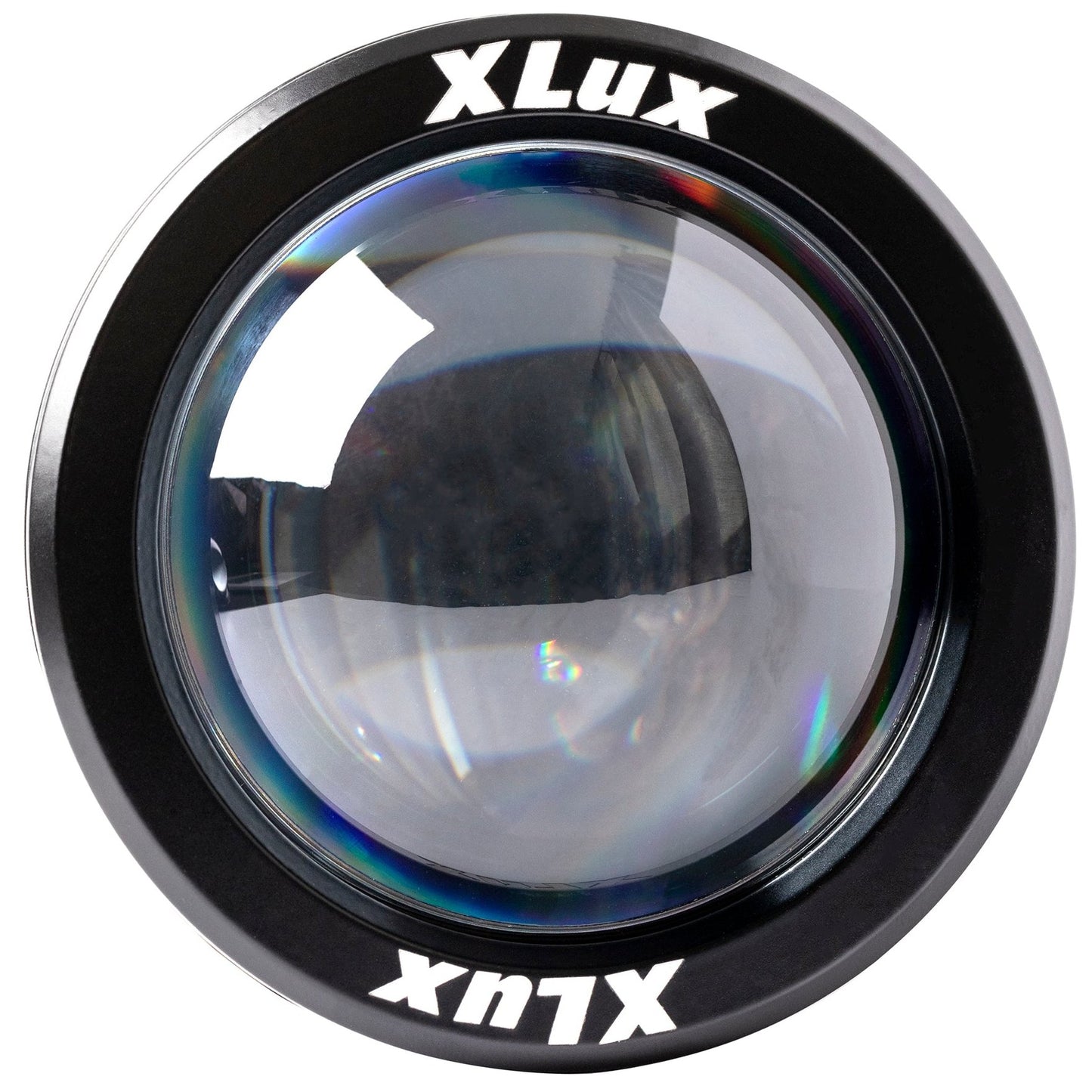

-Polycarbonate Lens

- -20 to 150deg Operating Temperature

-5000K Color Temperature

-Lumens: 2200 lm/lamp

-Max Candela: +100,000cd/lamp

-Horizontal and Vertical Beam Width: 8deg

-Lifetime guarantee

-Standard 2 pin DT connector

-Universal mount bracket with 1/4-20 Fastener
